What is DR Filter (Dielectric Resonator Filter)?

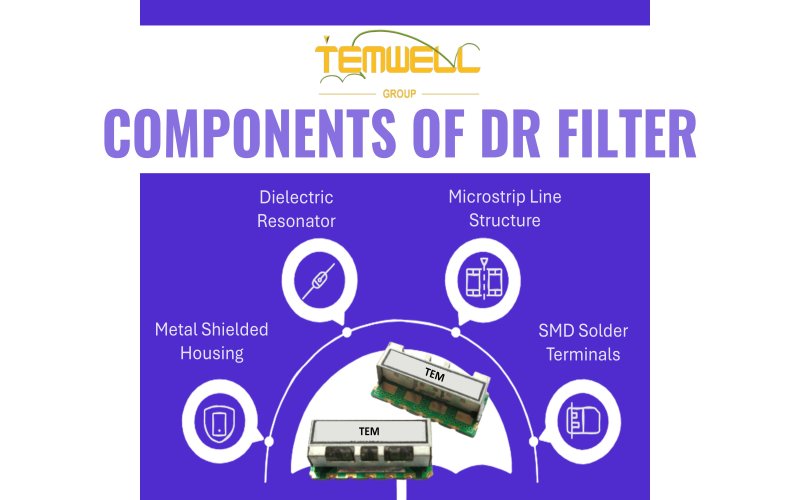

DR filter (Dielectric Resonator Filter) is a passive RF filter packaged with surface mount technology (SMD). The core component of the filter is the dielectric resonator (DR), which is made of high dielectric constant ceramic material with high Q value and excellent frequency stability. The main structure of the SMD DR filter includes a dielectric resonator, a metal shielding shell, a microstrip line structure, and standard SMD soldering terminals. It can be directly soldered on a PCB circuit board and is suitable for high-density assembly and automated production. It is common to design for modern wireless communication equipment, 5G base stations, satellite communications and millimeter wave technologies, etc.

Its main function is to selectively allow specific frequency signals to pass through and suppress unwanted interference frequency bands. Common applications include 5G NR, Wi-Fi 6E, satellite navigation, radar systems, etc. Compared with traditional cavity or coaxial filters, SMD DR filters have the advantages of small size, light weight, low insertion loss under small size, excellent frequency selection performance and temperature stability, and are particularly suitable for high-frequency RF front-end modules.

Typically, its RF Filter form includes bandpass filters (BPF), which are used to pass signals in a specific frequency band; bandstop filters (BSF), which suppress interference at specific frequencies; low-pass filters (LPF), which allow low-frequency signals to pass; and high-pass filters (HPF), which are suitable for millimeter-wave applications. With the development of wireless technology, SMD DR filters have become an indispensable key component in high-frequency communication equipment.

Features of DR Filter

DR filter (Dielectric Resonator Filter) is a common type of radio frequency (RF) filter that offer unique advantages compared to other filter types, such as SAW filters, Cavity filters, and Helical filters.

Firstly, DR filters feature a high Q factor and low insertion loss under small package. The dielectric resonator material provides extremely low energy loss, allowing signals to maintain high transmission efficiency. This makes them ideal for high-performance filtering applications such as 5G base stations, satellite communications, and radar systems, where stringent filtering performance is required.

Secondly, DR filters have the benefits of miniaturization and high stability. Compared with traditional Cavity filters, they are smaller in size and lighter in weight, making them suitable for installation in high-density electronic devices. They can also maintain a stable frequency response in an environment with changing temperature, and are an indispensable RF component for modern high-density electronic devices.

In addition, the DR filter has excellent resistance to temperature changes and can maintain a stable resonant frequency in extreme environments (-40°C to 85°C). Its high dielectric constant ceramic material has an extremely low temperature coefficient (TC), which effectively reduces frequency drift. Compared with SAW and Helical filters, DR filters provide more stable frequency selectivity, ensuring communication quality.

Lastly, DR filters are valued for their reliability and durability. In particular, DR filters with SMD (surface mount) packages can adapt to automated production and improve product consistency, making them suitable for harsh industrial and communication environments.

In summary, with their high Q value, low insertion loss, temperature stability, miniaturization, excellent anti-interference ability and durability, DR filters are a great choice for many high-frequency RF applications. Resonator Bandpass Filter(DR BPF)

Common product applications

DR filters (Dielectric Resonator Filters) are widely used in many various radio frequency (RF) products due to their high Q value, low insertion loss and excellent stability. Here are some common application:

5G communication system:

With the popularization of 5G technology, DR filters play an important role in base station equipment and mobile phones, helping to filter out useless frequency band signals, ensuring the stability and clarity of high-frequency communication signals, and improving network performance.

Satellite Communications:

Satellite  systems require precise frequency selection and high-performance filters. DR filters effectively isolate interference while providing stability under extreme environmental conditions, ensuring the reliable transmission of high-frequency signals. Therefore, they are widely used in satellite transmitters and receiving systems.

Radar system:

In radar equipment, DR filters can effectively filter out unnecessary signals to ensure the clarity and accuracy of radar signals, especially in military and aviation applications.

Radio communications:

Radio transmitting and receiving equipment, especially RF front-end modules that require high-efficiency filtering, often use DR filters to ensure signal purity and strength.

In summary, the excellent performance of DR filters enables them to play an important role in 5G communications, satellite communications, radar systems, radio communications and other fields.

Products and Services Provided by Temwell

With over 27 years of experience in RF filter design and manufacturing, Temwell specializes in providing customized filter solutions to meet various project needs.

Our DR filter (Dielectric Resonator Filter) customization service covers various frequency range designs, and can adjust key performance indicators such as specification parameters, low insertion loss, and temperature resistance according to customer needs.

Temwell R&D team will provide the most optimized solution based on power requirements, size restrictions, frequency range and other conditions. In addition, we provide a variety of packaging options, such as SMD (surface mount) packaging and connector packaging, to meet the needs of different application scenarios.

If your team has any needs for RF BPF, please feel free to contact us and get free consultation services so that we can provide you with the best solution.
